ASSURED AUTOMATION 037VAOBBE2CG2 VA SERIES BRASS ON/OFF VALVE
Starting At: $525.07
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: 037VAOBBE2CG2
IMS Product Code: 1849037
Packaging: Sold Individually
Description:

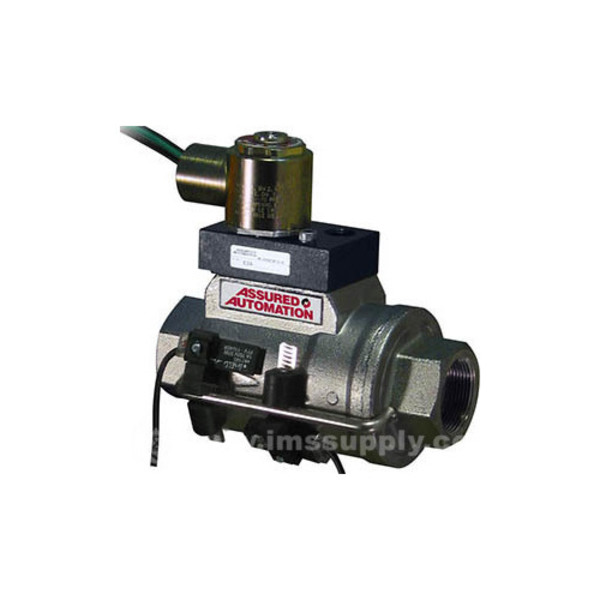

Assured Automation 037VAOBBE2CG2 VA Series Compact Brass On/Off Valve
The VA Series combines a pneumatic actuator and fast on-off control valve into one body, eliminating packing glands, actuators and mounting kits. There are no exposed moving parts, eliminating pinch points and increasing operator safety. Since the actuator is part of the valve, costs are greatly reduced when compared to standard actuated valves. Operating life has been tested to well over 1,000,000 cycles, the balanced design reduces friction and wear. The stroke is linear and parallel to the flow, dramatically reducing the required force to close or open the valve. The internal waterway design was designed for optimum flow characteristics.
Specifications:
Body Material: Nickel Plated Brass
Size and Connection: 3/8 inch NPT
Seats and Seal Material: BUNA
Actuator: Spring return, fail OPEN (sized for using 60psi supply air in applications up to 150psi ΔP)
NAMUR Solenoid: Explosion Proof (UL & CSA Listed) 3-way/2-position, with 220 VAC
Limit Switch: [G2] (2x) IP67 weatherproof proximity sensor - signal OPEN and CLOSED
Warning: This assembly contains both explosion proof and non explosion proof electrical components; therefore the assembly is NOT EXPLOSION PROOF
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
