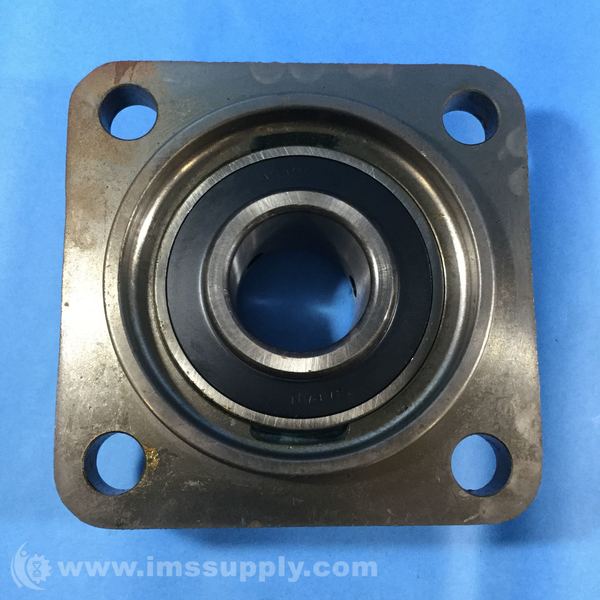

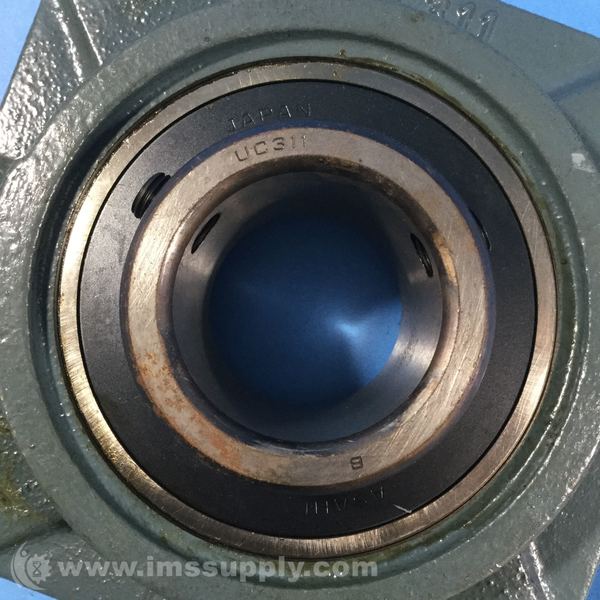

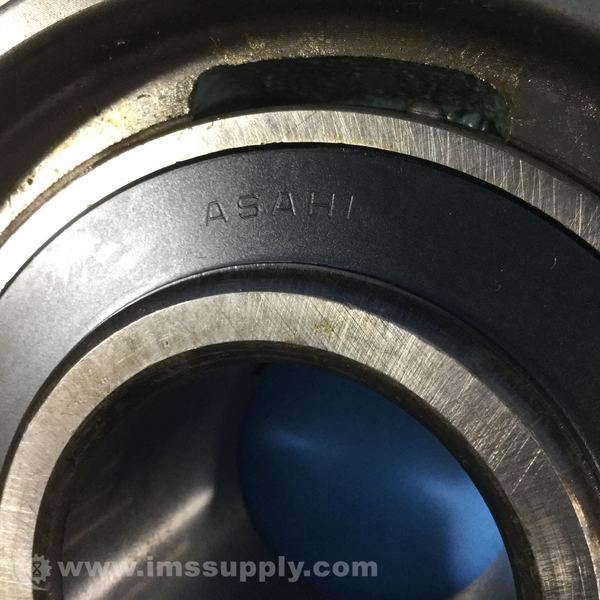

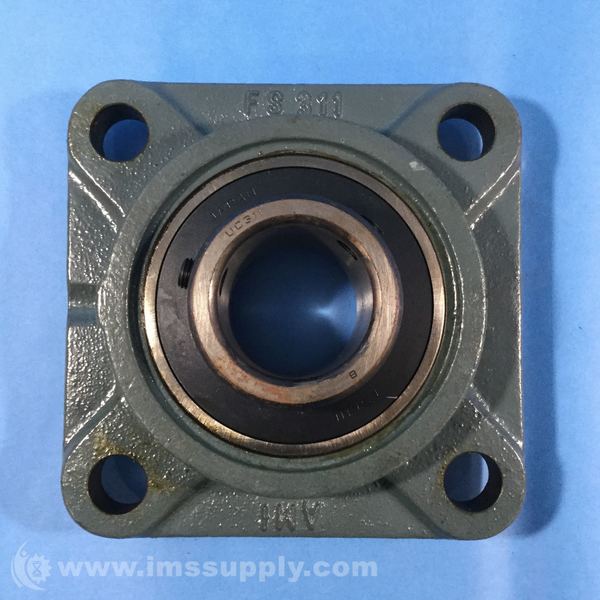

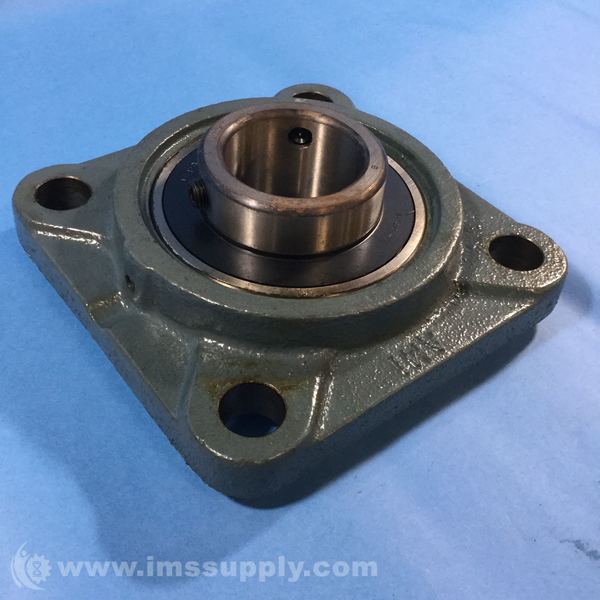

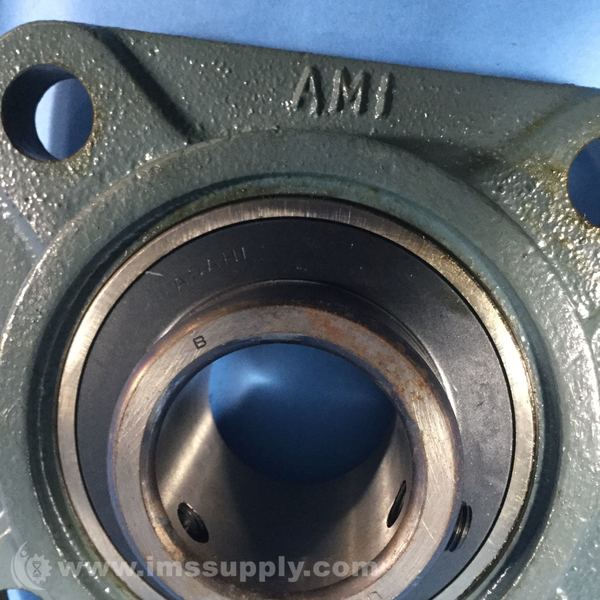

AMI BEARINGS UCFS311 SET SCREW LOCKING FOUR-BOLT FLANGE UNIT
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCFS311
IMS Product Code: 1809098
Packaging: Sold Individually
Description:
Ami Bearings UCFS311 Set Screw Locking Four-Bolt Flange Unit, UCFS300 Series
Specifications:
- Shaft Diameter: 55 mm
- Bolt Size: M20
- Bearing: UC311
- Housing: FS311
- Lubrication Fitting Tap: 1/8-27 NPT
- Weight: 13.8 lb
- bore diameter: 55 mm
- radial dynamic load capacity: 7300 kgf
- bolt center-to-center length: 140 mm
- radial static load capacity: 4600 kgf
- bore type: Round
- seal type: Contact with Flinger
- duty type: Heavy Duty
- length through bore: 66 mm
- mounting type: Four-Bolt Flange
- lubrication type: Lubrication Fitting
- housing material: Cast Iron
- series: UCFS300
- locking device: Set Screw
- replacement bearing: UC311
- expansion type: Non-Expansion Bearing (Fixed)
