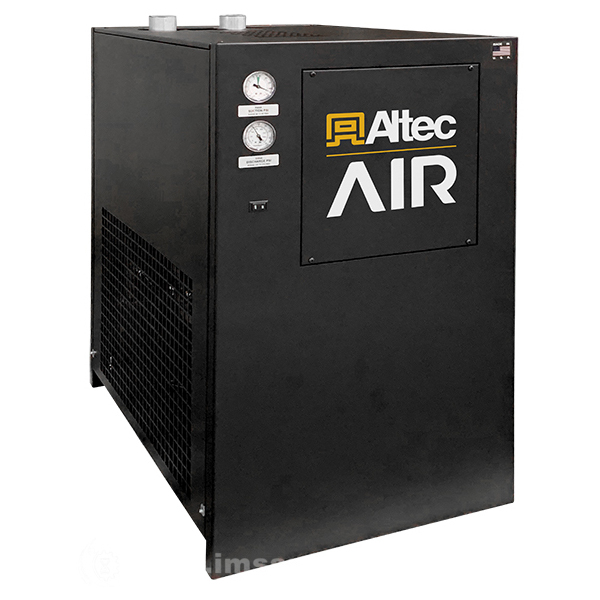

ALTEC AIR UA75A-2 NON-CYCLING REFRIGERATED AIR DRYER 115 VAC
Starting At: $1,969.83
Quick Overview
Manufactured By: ALTEC AIR
Manufacturer Part Number: UA75A-2
IMS Product Code: 1929585
Packaging: Sold Individually
Description:

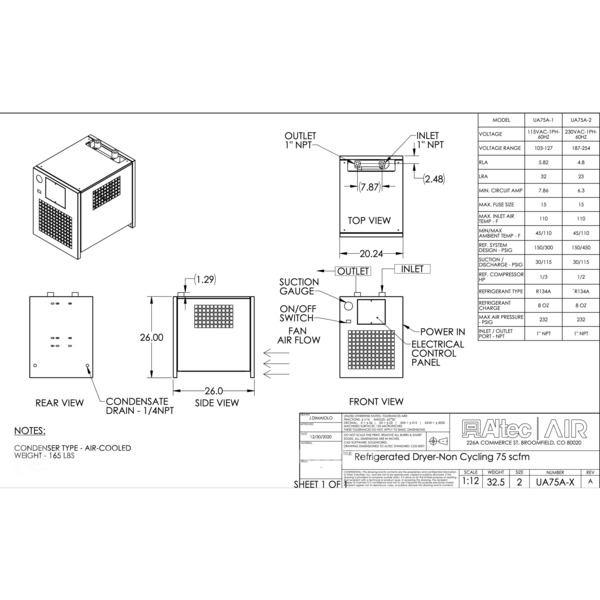

Refrigerated Dryer-Non Cycling 75 scfm
Features:
- Voltage: 230VAC-1PH 60HZ
- Voltage Range: 187-254
- RLA: 4.8
- LRA: 23
- Min. Circuit Amp: 6.3
- Max. Fuse Size: 15
- Max. Inlet Air Temp - F: 110
- Min/max Ambient Temp - F: 45/110
- Ref. System Design - PSIG: 150/450
- Suction / Discharge - PSIG: 30/115
- Ref. Compressor Hp: 1/2
- Refrigerant Type: R134A
- Refrigerant Charge: 8 OZ
- Max Air Pressure - PSIG: 232
- Inlet / Outlet Port - NPT: 1" NPT
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
