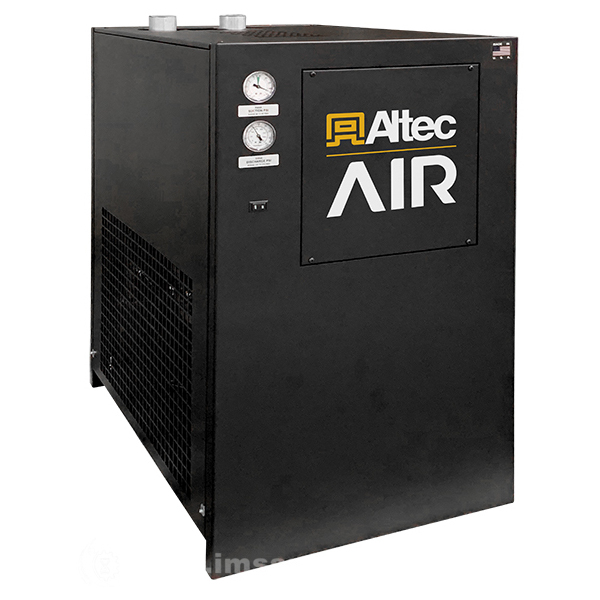

ALTEC AIR UA40A-1 NON-CYCLING REFRIGERATED AIR DRYER 115 VAC, 1 P
Starting At: $1,961.60
Quick Overview
Manufactured By: ALTEC AIR
Manufacturer Part Number: UA40A-1
IMS Product Code: 1929511
Packaging: Sold Individually
Description:
Refrigerated Air Dryer 115 Vac
Features:
- Outlet Dewpoint with 100°F / 38°C Saturated Inlet
- 38°F Pressure Dewpoint (PDP)
- Maximum Pressure - 232 PSIG
- Maximum Inlet Temperature - 120°F / 49°C
- Voltage: 115VAC-1PH-60HZ
- Voltage Range: 103-127
- RLA: 4.91
- LRA: 27.5
- Min. Circuit Amp: 6.7
- Max. Fuse Size: 15
- Max. Inlet Air Temp: F110
- Min/max Ambient Temp: F45/110
- Ref. System Design - PSIG: 150/300
- Suction / Discharge - PSIG: 30/115
- Ref. Compressor Hp: 1/4
- Refrigerant Typer: 134
- Refrigerant Charge: 8 Oz
- Max Air Pressure PSIG: 232
- Inlet / Outlet Port - NPT: 3/4" NPT
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged ALTEC AIR UA40A-1 NON-CYCLING REFRIGERATED AIR DRYER 115 VAC, 1 P. Contact us today for details.
Repair Time Estimates Provided In Quote
