ALLEN BRADLEY 871C-C15R30 PROXIMITY SENSOR, PLASTIC UNSHIELDED
Starting At: $28.75
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 871C-C15R30
IMS Product Code: 156686
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Description:

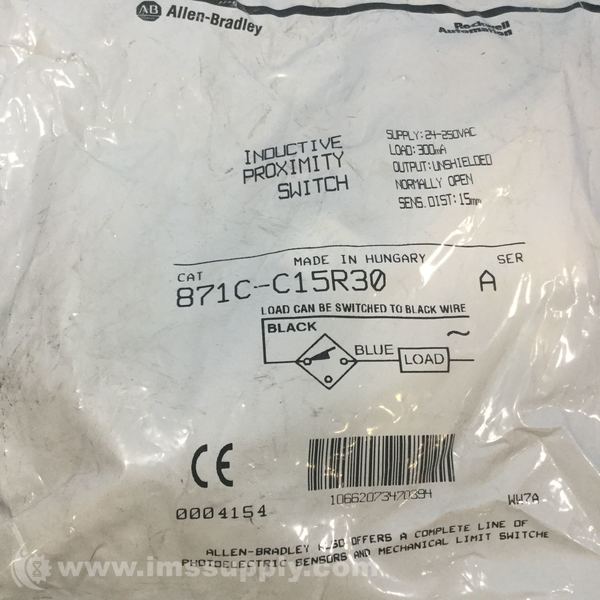

Allen Bradley 871C-C15R30 Proximity Sensor, Plastic Unshielded
Specifications:
- Item Name: Inductive Proximity Sensor
- Type: Unshielded, 2-Wire AC
- Sensing Distance: 15 MM
- Voltage Rating: 20 - 250 VAC, Drop: 11 V
- Output: NO
- Frequency Response: 8 HZ
- Current Rating: Load: 300 MA, Leakage: 1.7 MA, Inrush: 3 A (1 cycle)
- Material: Plastic Barrel And Face
- Connection: 2 M PVC Cable
- Size: 30 MM Diameter X 81 MM Length
- Temperature Rating: -25 To 55 DEG C
- Enclosure: IP67 IEC529, NEMA 1, 2, 3, 4, 4X, 12, 13
- Environmental Conditions: Shock: 30G With 11 MS Pulse Duration, Vibration: 55 HZ, 1 MM Amplitude, 3 Planes
- Thread Size: 61 MM Length
