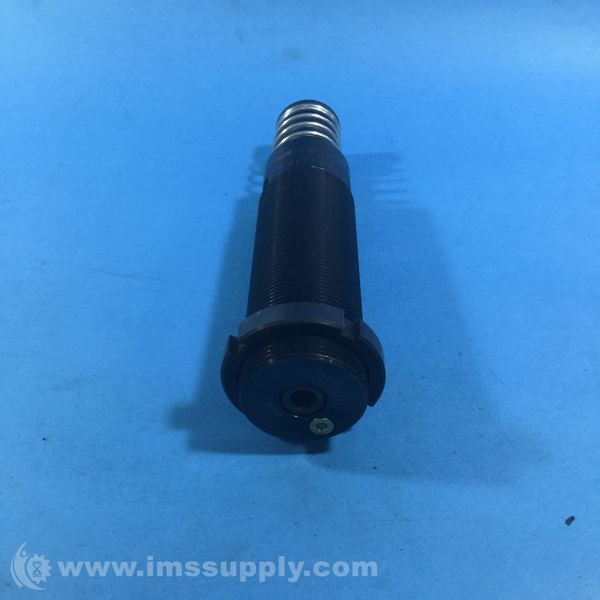

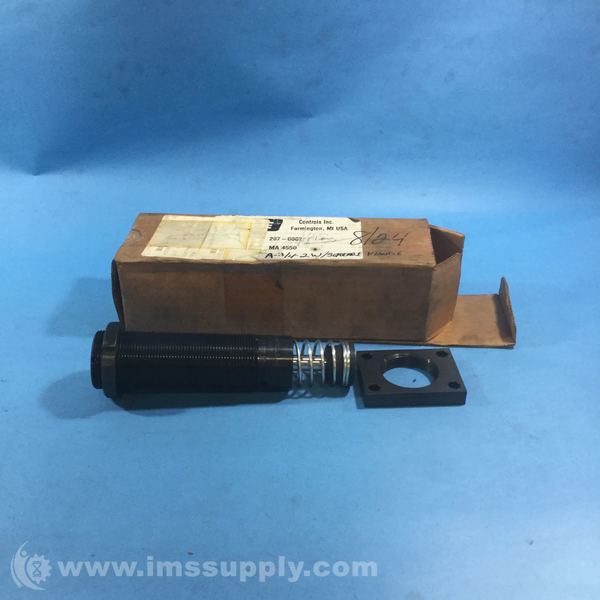

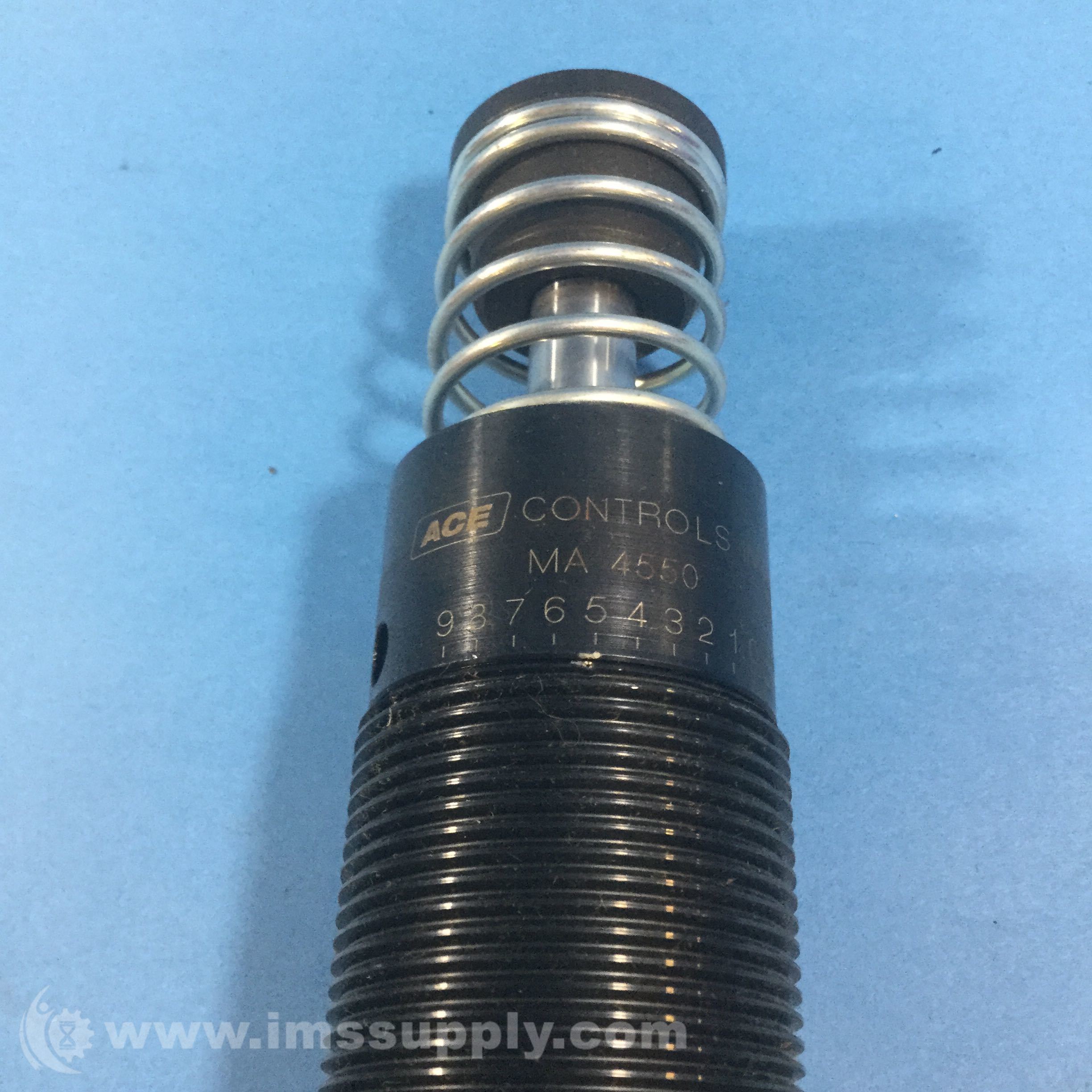

ACE CONTROLS INC. MA 4550 SHOCK ABSORBERS INDUSTRIAL
Quick Overview
Manufactured By: ACE CONTROLS INC.
Manufacturer Part Number: MA 4550
IMS Product Code: 1812845
Packaging: Sold Individually
Description:
ACE Controls Inc. MA 4550 Shock Absorbers Industrial
Specifications:
- Energy capacity: 7,523 in-lbs/cycle
- Energy capacity: 1,000,000 in-lbs/h
- Energy capacity with oil recirculation: 2,200,000 in-lbs/h
- Energy capacity with air/oil tank: 1,700,000 in-lbs/h
- Effective weight minimum: 150 lbs
- Effective weight maximum: 32,000 lbs
- Return Force maximum: 32.2 lbs
- Return Force minimum: 15.1 lbs
- Return Time: 0.08 s
- Side Load Angle max: 3 °
- Impact velocity range MA: 0.5 ft/sec to 16.5 ft/sec. ML: 0.06 ft/sec to 1.5 ft/sec. Other speeds on request.
- Operating temperature range: 10 °F to 150 °F. Other temperatures on request.
- Mounting: In any position
- Positive: Stop Integrated
